AIR MESH – SLAT Panel
APPLICATION:
AIR MESH – SLAT Panel

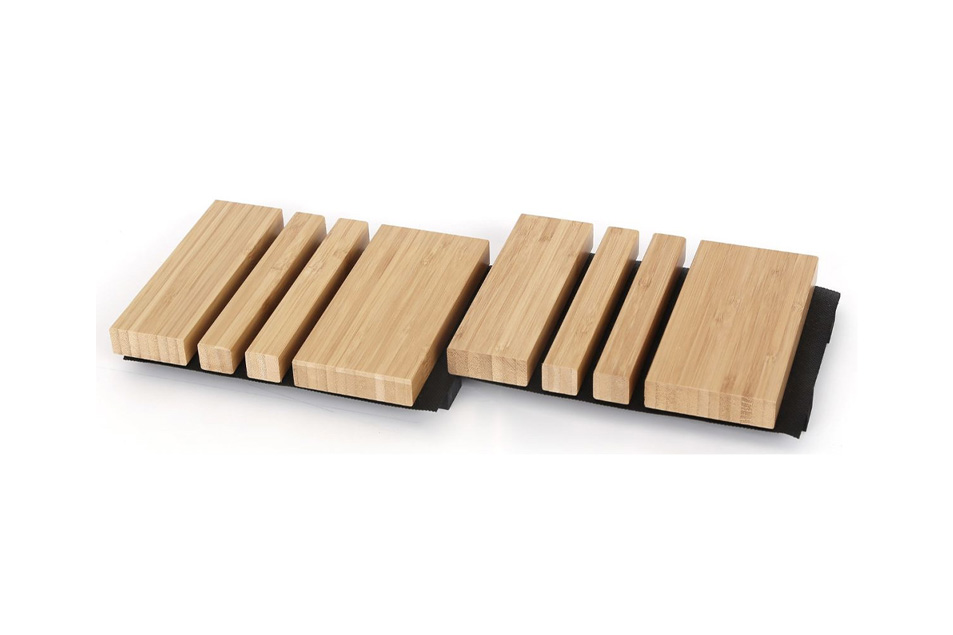

CoreBOO™ AIR MESH SLAT Panels combine sustainable bamboo slats with an integrated acoustic fabric backing that achieves an NRC rating of 0.75 in open-plenum installations. The lightweight design offers strong acoustic performance and clean visual lines, suitable for commercial and hospitality environments seeking modern sound control solutions.
Please note: If the exact sample you’ve requested isn’t available, our sales team will contact you to provide the most suitable alternative to meet your project requirements.
PANEL PROFILES
Square 20 (tight)
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 10mm (3/8″)
Square 20
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 20mm (3/4″)
Square 30
Slat Size: 30mm x 30mm (1-1/4″ x 1-1/4″) Spacing: 30mm (1-1/4″)
Flat 30 (tight)
Slat Size: 20mm x 30mm (3/4″ x 1-1/4″) Spacing: 10mm (3/8″)
Flat 40 (tight)
Slat Size: 20mm x 40mm (3/4″ x 1-5/8″) Spacing: 10mm (3/8″)
Flat Mix
Slat Size: 20mm x 40|20|20|60mm (3/4″ x 1-5/8″|3/4″|3/4″|2-1/3″) Spacing: 8mm (~1/3″)
Tall 50
Slat Size: 40mm x 20mm (1-5/8″ x 3/4″) Spacing: 20mm (3/4″)
Square 20 (tight)
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 10mm (3/8″)
Square 20
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 20mm (3/4″)
Square 30
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 10mm (3/8″)
Flat 30 (tight)
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 20mm (3/4″)
Flat 40 (tight)
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 10mm (3/8″)
Flat Mix
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 20mm (3/4″)
Tall 50
Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 10mm (3/8″)
Color Range
Product Information
-
FEATURES
& BENEFITS - Sustainability Characteristics
-
Product
Details - Customization Options
- SPECIFICATION DOWNLOADS
- NRC = .75 (with open ‘air plenum’ 8″ or greater)
- Solid SLAT construction (NO Delamination or veneer seperation common with MDF products)
- Allows for ‘seamless’ installation
- Suitable for use in hanging or ‘drop-in’ ceiling applications
- Matching trim pieces and individual SLATS avaiable
- Almost limitless options for SLAT profile and dimension
- Raplidly renewable
- Low-VOC (E0)
- NAUF (No Added Urea Formaledhyde)
- CARB 2 Compliant
- LEED Compliant
- Biodegradable
- Available as “FSC-certified’
- Composition: 100% Natural Bamboo
- Standard Sizing:2440mm x 400mm (approx. 15.75″ x 96″) * Lenghts available up to 19′
- Sq. ft. per panel: 10.5 sq. ft.
- Finish: Available UV, Oil or Unfinished
- Fire Rating: Available in Class A
SLAT dimensions, lengths and spacing are completely customizable

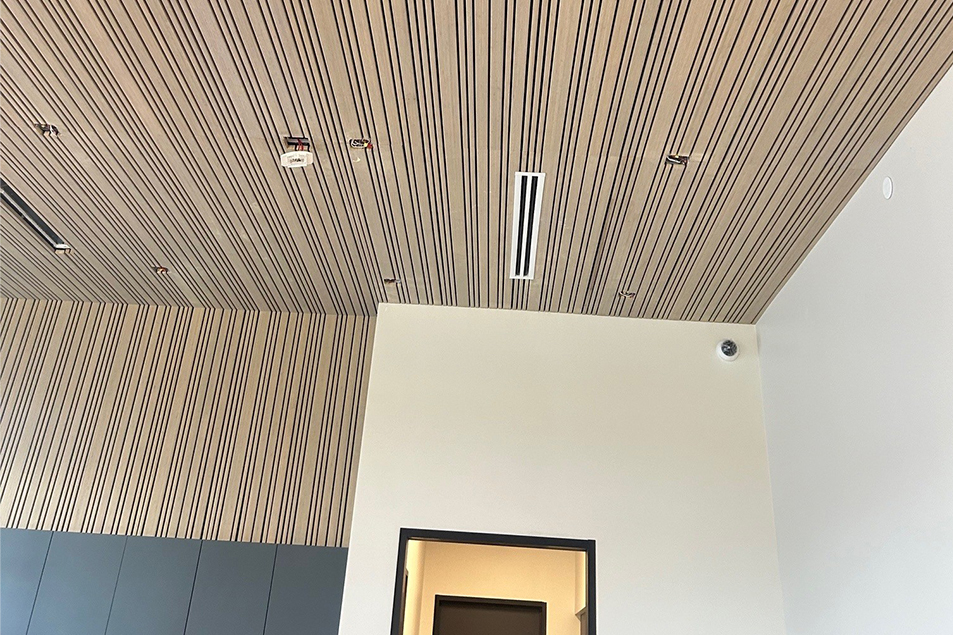

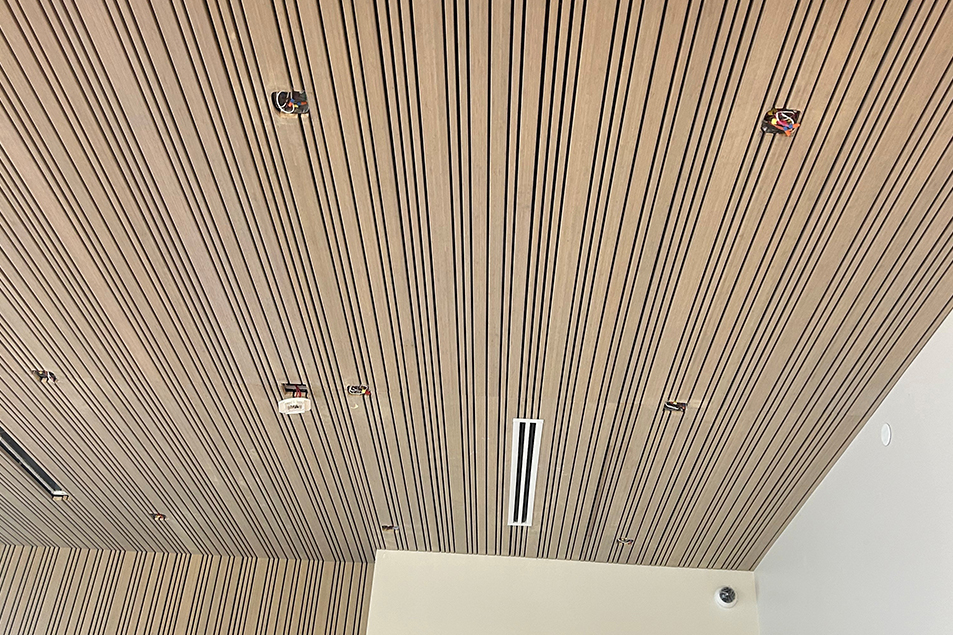

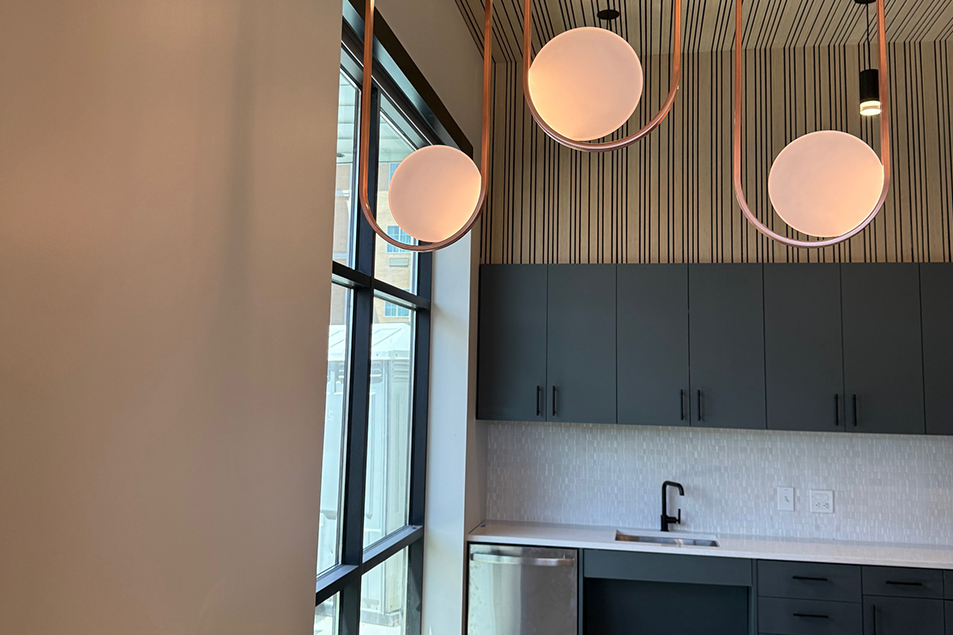

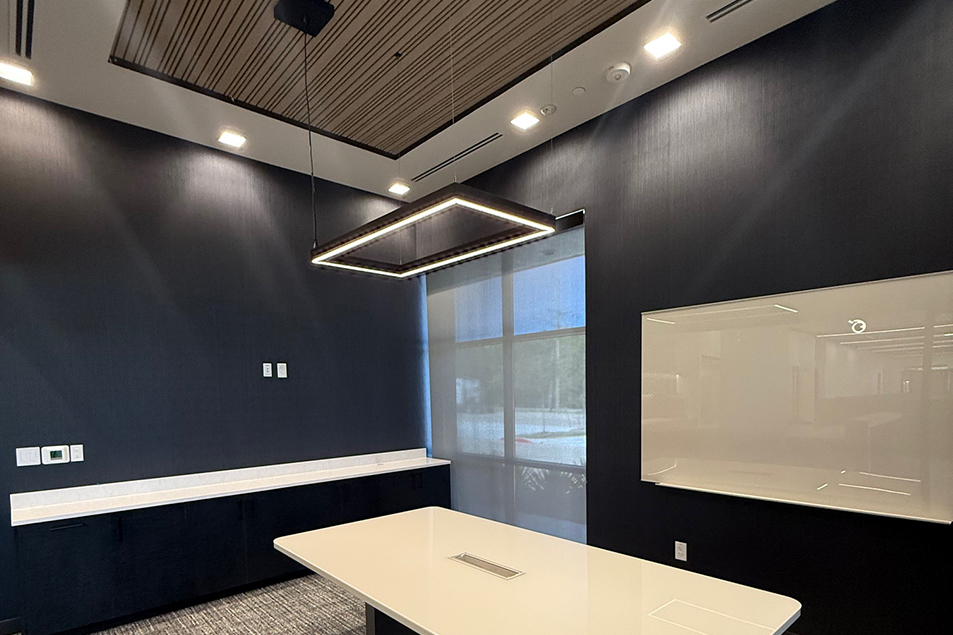

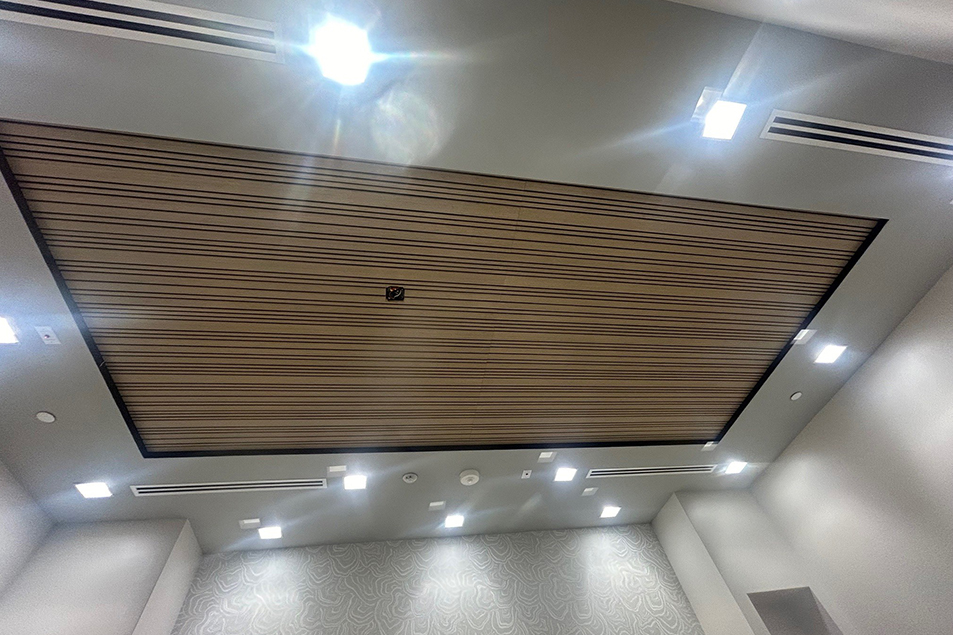

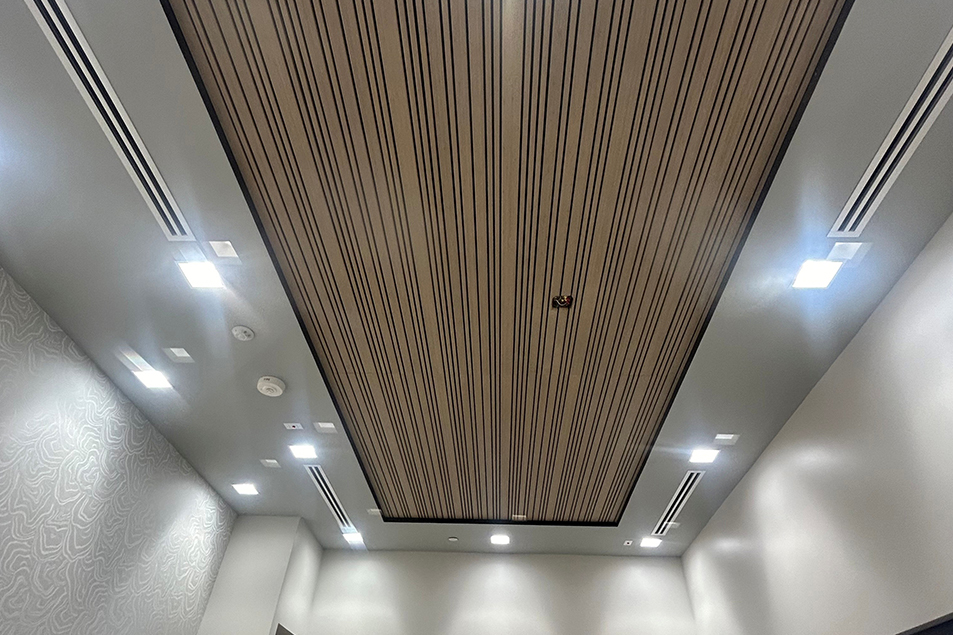

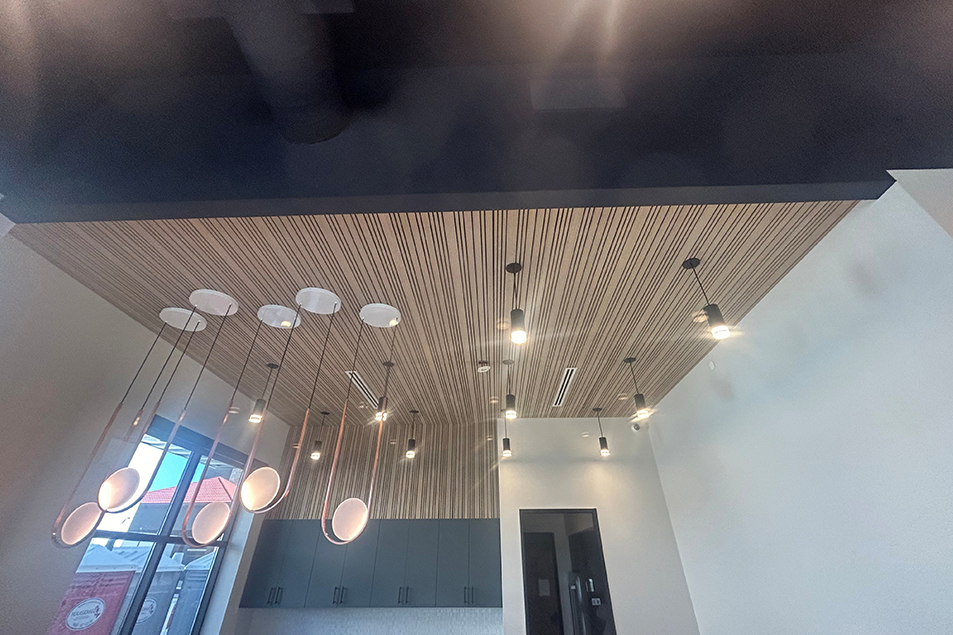

Product gallery
